The advantages of Lithium ion batteries for floor cleaning machine

Release time:2020-10-22

As the price of lithium batteries continues to fall, lithium batteries have begun to be used in scrubbers. By comparison, lithium batteries already have great advantages. The application of lithium batteries to replace lead-acid batteries in scrubbers is becoming more and more popular.

There advantages as follows:

·Cycle life more than 3000 cycles, long service life, and do not need change battery during the entire service life of ground clean machine.

·Flexible charge is available, such as charge during change water or rest. Don't worry about forgetting to charge or running out of battery.

·Maintenance free, Don't worry about charging during long time of storage.

·The price of the lithium ion battery is more competitive in the entire service life of the ground clean machine.

Comparison of lead-acid and lithium batteries

Item	Lead acid battery	Lithium ion battery（LFP）
Service life	300-500 cycles, about 2 year in average	3000 cycles, same service life with machine
Charge	8-10 hours needed to full charge. Usually charge for whole night after end of work. Frequent charge will shorten it`s service time.	Only 1-2 hours needed to full charge. Flexible charge is available, such as charge during change water or rest. Frequent charge does not affect its service time.
Working	The voltage gradually decreases, the motor power gradually decreases, and the work effect will decrease in the later stage, such as the cleaning is not clean.	The voltage is stable and the working effect will not decrease.
Energy output efficiency	About 75%	About 98%
Unit price	Assume 1	About 2
Total price of battery in whole service life of the machine	Generally change the battery 3 times, the price is 3	Solution 1. The capacity is 50% of the lead-acid battery capacity, which is equivalent to 65% of the energy output of the lead-acid battery. It can be charged at any time and without affecting actual use, the price is 1. The entire life cycle cost is 1/3 of the lead-acid battery.
Total price of battery in whole service life of the machine	Generally change the battery 3 times, the price is 3	Solution2. The capacity is 80% of the lead-acid battery capacity, which works the same as a lead-acid battery, and the price is 1.6. The entire life cycle cost is about 50% of the lead-acid battery.
Maintenance	Maintenance is necessary. Charge every 1-3 months is necessary under long time of storage.	Maintenance is unnecessary. Self-discharge less than 15% one year, and do not need charge during storage for one year.

We designed and produced LFP batteries for floor cleaning machine, and got perfect feedback from the users.

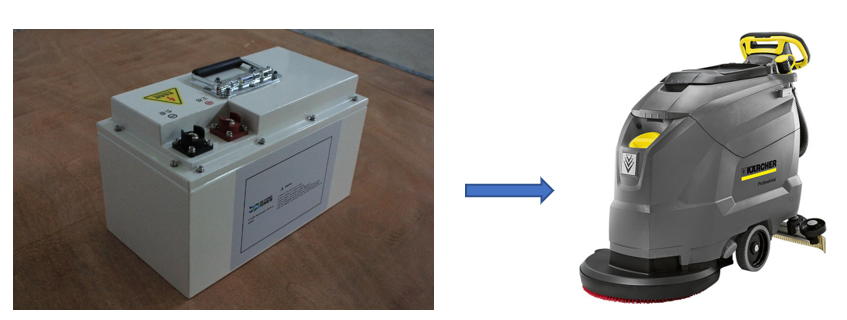

24V 60Ah

Technical parameter

Model: BP2460
Electrical Specification
Nominal Voltage	25.2V
Nominal Capacity	60Ah
Capacity @20A	3HR
Energy	1536Wh
Resistance	≤10mΩ
Efficiency	≥98%
Self Discharge	＜3% per month
Cycle life	＞3000 cycles @80% DOD
Charge specification
Standard charge	Constant current 15A. Constant voltage 29.2V, to charge current 3A cut-off @25±2℃.
Standard charge time	Approx. 5h
Max. Charge current	60A
Charge Voltage cut-off	29.2V (1±0.2S)
Charge temperature	-20～55℃
Discharge specification
Max. Constant discharge	60A
Peak discharge current	120A (30S)
Max. peak discharge current	no less than 200 (5s)
Discharge voltage cut-off	20V
BMS discharge cut-off	18.4V
Short circuit protection	200-600μs
Discharge temperature	-30～60℃
Mechanical Specifications
Dimension(LWH)	330175220mm
Weight	15.8±0.2kg
Terminal Type	M6 or M8 screw
Case Material	Metal
Enclosure protection	IP66
Combination method	8S2p
Total cells	16 pieces

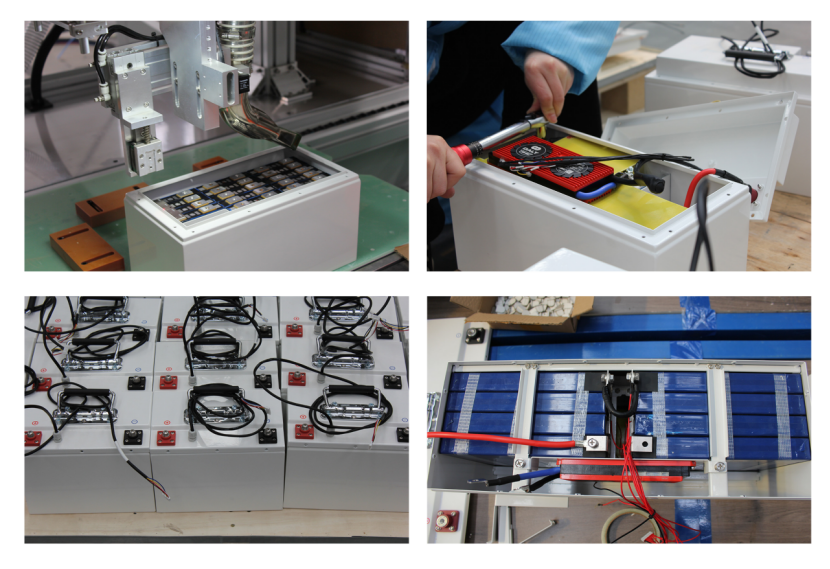

Photo of details

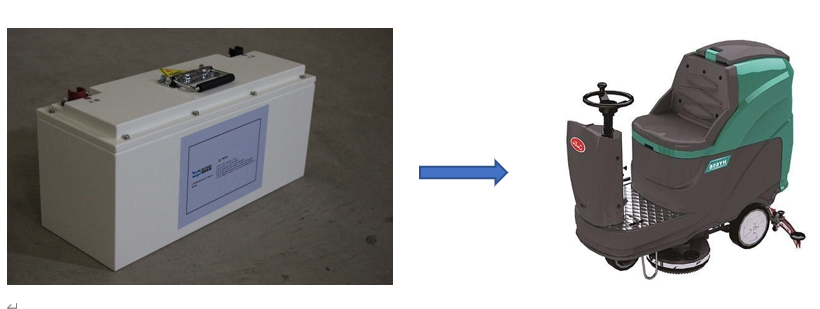

2. 24V 100Ah

Technical parameter

Model	BP24100
Electrical Specification
Nominal Voltage	25.2V
Nominal Capacity	100Ah
Capacity @33.3A	3HR
Energy	2560Wh
Resistance	≤15mΩ
Efficiency	≥98%
Self-Discharge	＜3% per month
Cycle life	＞3000 cycles @80% DOD
Charge specification
Standard charge	Constant current 25A. Constantan voltage 29.2V, to charge current 5A cut-off @25±2℃.
Standard charge time	Approx. 5h
Max. Charge current	100A
Charge Voltage cut-off	29.2V (1±0.2S)
Charge temperature	-20～55℃
Discharge specification
Max. Constant discharge	100A
Peak discharge current	200A (30S)
Max. peak discharge current	no less than 300 (5s)
Discharge voltage cut-off	20V
BMS discharge cut-off	18.4V
Short circuit protection	200-600μs
Discharge temperature	-30～60℃
Mechanical Specifications
Dimensions(LWH)	To be confirmed by the buyer
Weight	About 24.5±0.5kg
Terminal Type	M8 screw
Case Material	Metal
Enclosure protection	IP66
Combination method	8S1P
Total cells	8 pieces (LFP 100Ah cell)

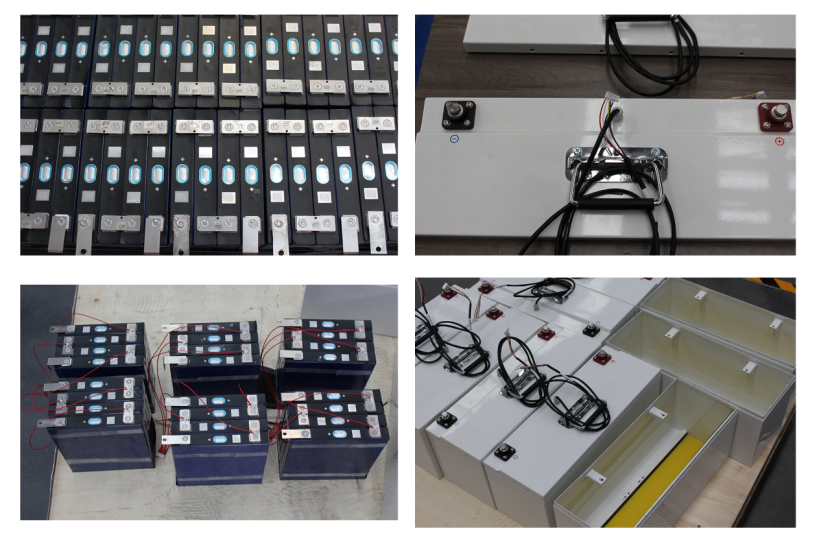

Photo of details
